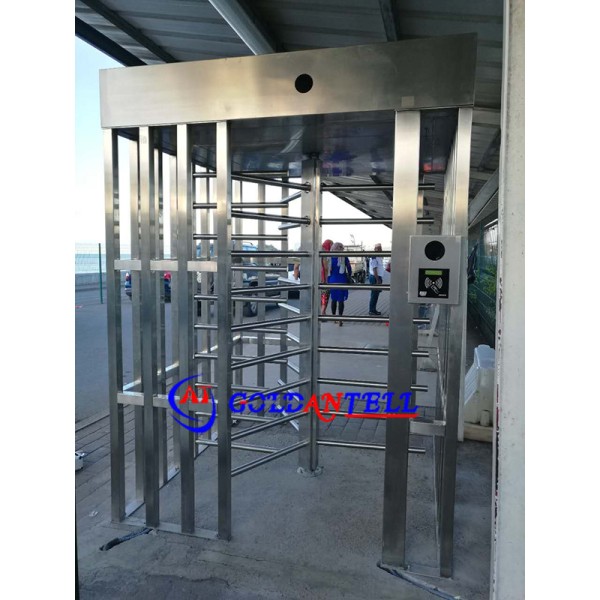

Football Exit Electric Full Height Turnstiles

Name: Football Exit Electric Full Height Turnstiles
Brand: Goldantell
Price: 1 USD

Brand Name : Goldantell

Model Number : GAT-504

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pc

Price : negotiation

Payment Terms : T/T,western Union,LC,Paypal

Supply Ability : 1,000pcs per month

Delivery Time : 5-9 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Dimension : 1500 (L) * 1350(W) * 2300 (H)

Control Type : manual or electric automatic

Entrance : single or double passing channel

Housing material : 304 stainless steel

Arm Type : three-arms or four arms

Pass width : ≤650mm

Passing speed : 30 person/min

Material thickness : 1.5~2mm

Contact Now

Football Exit 230V Electric Full Height Turnstiles with RFID/Fingerprint Access

High-performance electric full height turnstiles designed for secure access control with multiple authentication options including RFID and fingerprint recognition.

Site Application

Access Width: Within 900mm space, providing comfortable passage for pedestrians.

Public Places: Lobby entry, subway stations, airports, libraries, bookstores, parks, exhibition halls, stadiums, museums, apartments, residential areas, offices, and commercial buildings
Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, nightclubs, swimming pools, and gyms
Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, and enterprise entrance/exit attendance systems

Football Exit Electric Full Height Turnstiles

Technical Specifications

Item Model	GAT-504
Cabinet Dimension	1500 (L) × 1350 (W) × 2300 (H) mm
Cabinet Material	304 Stainless Steel
Power Supply	AC220±10%V 50Hz or AC110±10%V 60Hz
Opening/Closing Time	1 second
Arm Length	51cm (extendable)
Access Mode	Single in/out or Bidirectional
Optimal Flow Rate	30 persons/min (open), 25-30 persons/min (closed)
Reset Time After Breakdown	Default 10s (adjustable)

Product Features

The turnstile body features brushed stainless steel construction for a seamless, elegant design. Three arms rotate in one or two directions via controlled drive mechanism. Emergency unlocking is available both manually and automatically. The robust mechanism with intelligent control unit ensures reliable performance for intensive use with smooth operation.

Key Features & Functions

Reliable design with low noise operation and long service life
Standard switch signal input for easy integration with external access controllers (barcode, IC card, fingerprint)
Multiple operating modes including bidirectional card reader/fingerprint limiting or one-way controlled access
Adjustable hydraulic shock absorbers for customized return speed
Anti-recoil feature immediately locks when detecting opposite direction entry
Compatible with various access control systems including RFID, fingerprint, QR code, barcode, ticket, ESD testing, and facial recognition
