Entrance Intelligent QR code access door safety system optical turnstile mechanism
————————————————————————————
Brief Description
Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.
1. Standard features: made of 304 stainless steel; IP 54,waterproof , with nice and elegant shape, anti- rust,durable.
2. CE Certificated
3. System Integration: be compatible with RFID / fingerprint / QR or barcode / ESD access control system, to manage
Nice Features & Functions
——SAFETY IS PRIORITY
1. Safety function(anti-pinching). By default flap wing will auto- reverse if IR sensor detected obstacle within the flap wing area. This avoid flap wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the flap wing to ensure flap wing is easily visible.
2. Anti-tailgating/ anti-retrogradation function: Flap wing can be set to pause if IR sensor detected obstacle nearby wing area during closing. Flap will resume closing once the obstacle is removed. This is to make it very difficult for following user to tail gate the first user.
3. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.

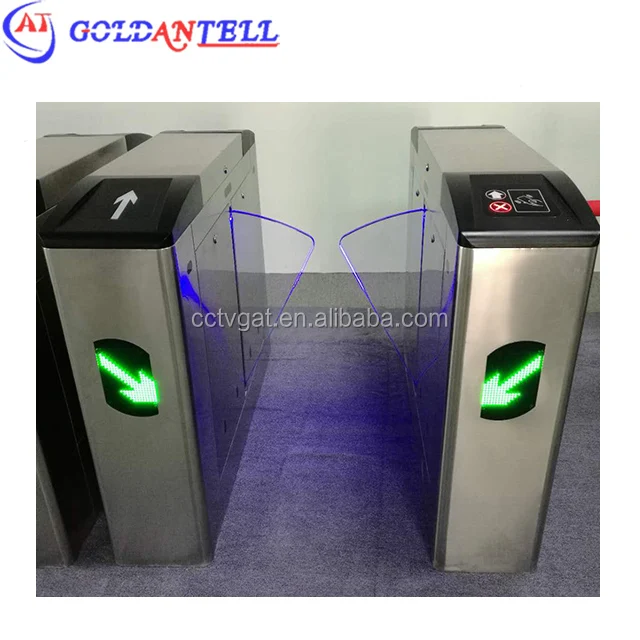

4. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
5. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
6. Easy integration. Reader holder bracket is available for installing RFID reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket.
Technical specification
Item NO.
GAT-206
Cabinet dimension
1200 (L) x 300 (W) x 1000 (H) mm
Cabinet material
304 stainless steel (316 ss can be custom-made)
Switching power supply
AC220±10%V 50Hz or AC110±10%V 60Hz
Flap opening/closing time
0.6-0.8s
Stretching-out flap length
285 mm for single wing; if for the disable access, can lengthen
Access mode
single in/out or Bidirectional
Optimal flow rate
40 persons/min (open), 25-30 persons/min (closed)
Reset time after break down
default 10s,can be changed to fit different demands
7inch Screen on turnstile
show date,time, entry event such as "invalid ticket" "entry"

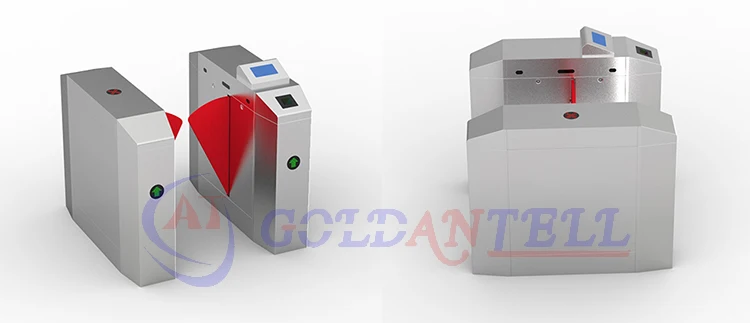

GAT-206 Display
1_ the colour of flap arms can optional of visible Red, blue, black, or transparent with Led Lighting.
2_ the design of Reading Window can be dual with RFID reader and Barcode scanner.(only Barcode scanning window below).
More Good Options
System Demonstration Videos included for your reference below
Model: GAT-214
Model: GAT-New
Model: GAT-206
Model: GAT-218

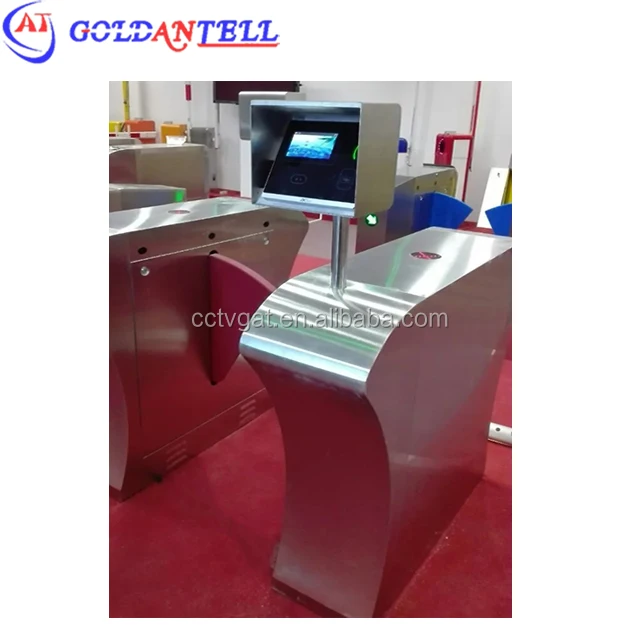

Facial recognition
RFID Card Reader

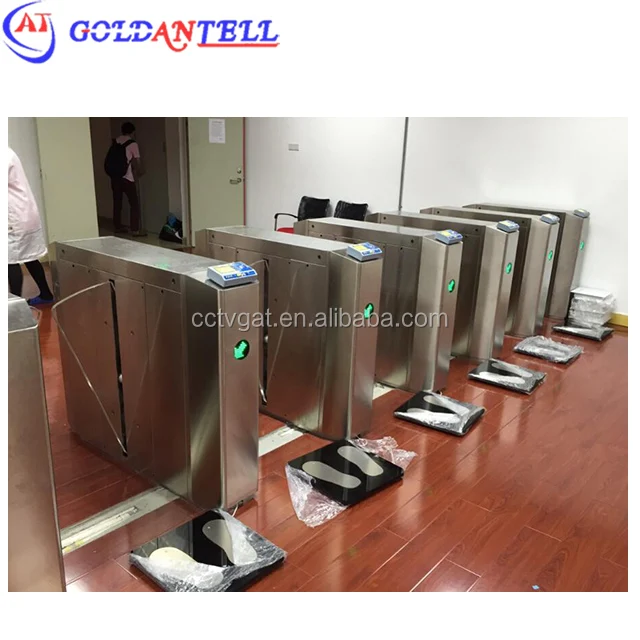

ESD Tester+ IC/ID card

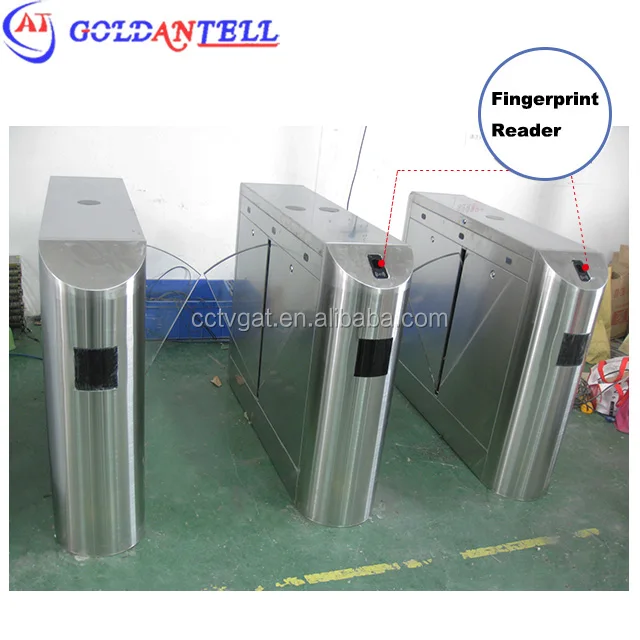

fingerprint Reader
For QR code access control, all our turnsitle gates series can be equipped with QR code (or dual rfid card reader optional).
Below are our examples FYI, working demonstration video included.

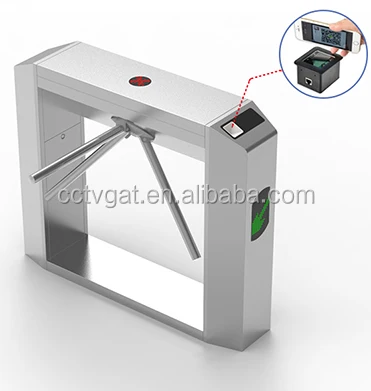

Tripod Turnstile Type

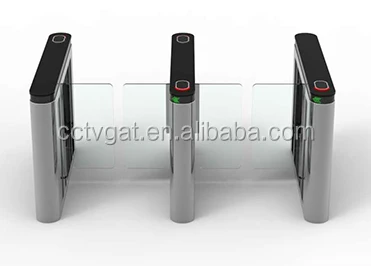

Swing Turnstile Type

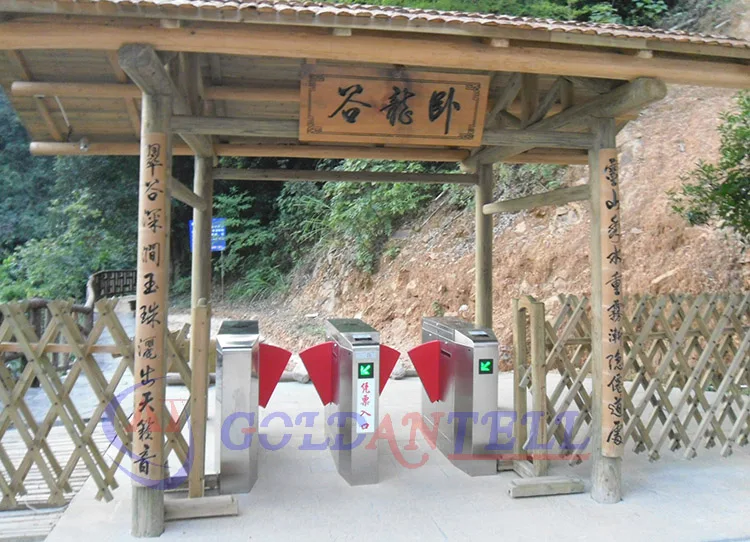

Project Sites
Application
Flap turnstile barrier Series are widely suitable for Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control. But the Optical Turnstile with colorful led light is NOT advised to be installed outdoor or near sea side.
No Screen on turnstile below

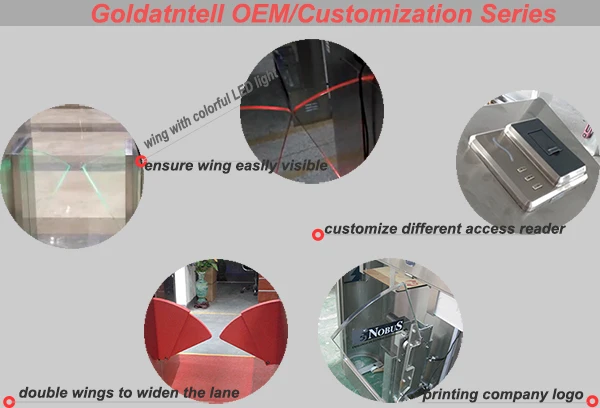

OEM Series

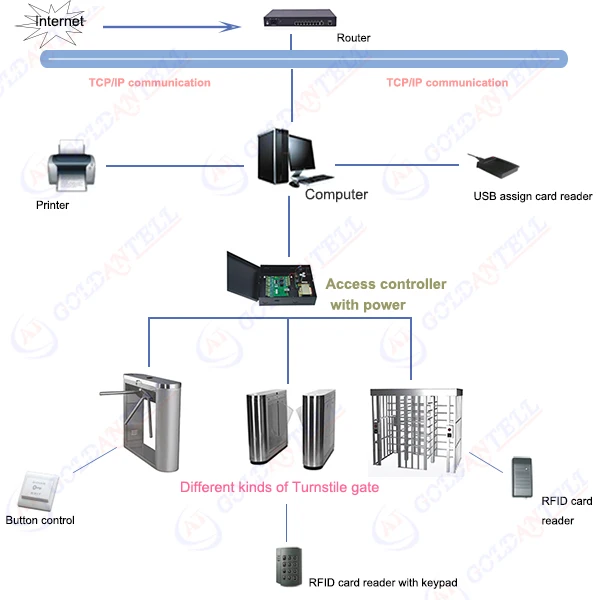

Access Control Working_System Integration

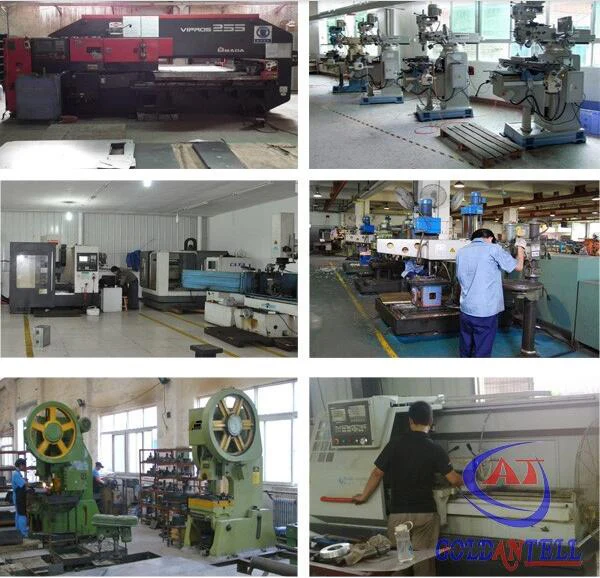

Manufacture Machine
Security Packaging
Trade Term
1. This offer is valid with 30 days.
2. Delivery time: Within 7 days after receive the payment.
3. Item of payment: T/T, LC, Western Union, Escrow, PayPal total payment before delivery.
4. Carton box + wooden case/crate.
Delivery detail 1.When ship by sea, it normally takes 15-60 days depend on different countries.
2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door, it normally takes 3~ 5 days to arrive;
3. We can also help you ship by air cargo, it takes about 2-7 days to arrive;
No matter what delivery way, depending on your actual requirements.
